Q.ik

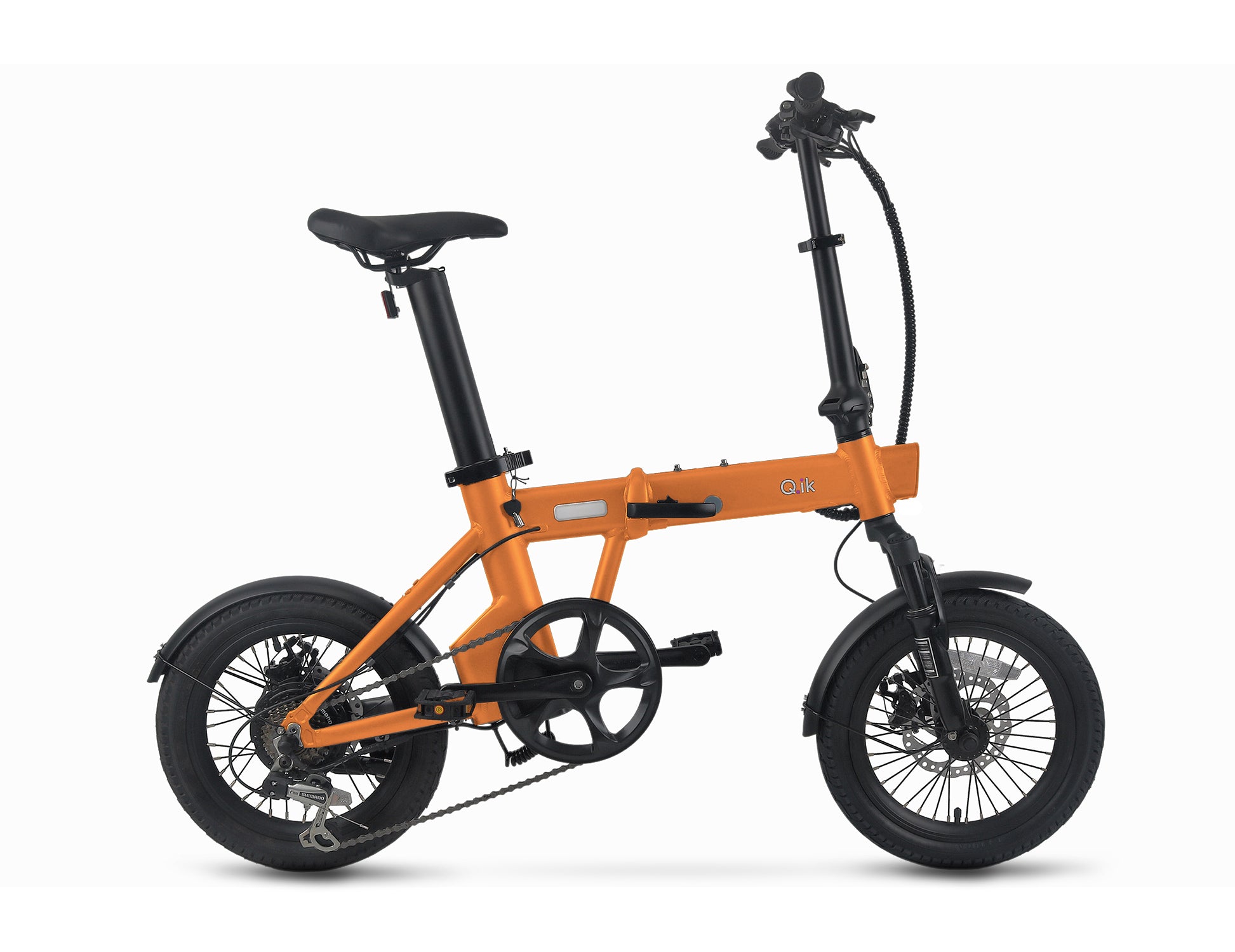

Q.ik Nemausus
ULTRA COMPACT 16"WHEEL FOLDING ELECTRIC BIKE
SPECIFICATIONS
The Q.ik Nemausus is a very compact 16”-wheel model that can be folded down in two movements thanks to two pivot points. The folding process is quick and easy and the bike’s compactness and lightweight build make it great for carrying on public transport or in the boot of a car.
The battery is integrated into the seat post and can be easily removed, transported and charged conveniently anywhere. The 5-level motor assistance is managed by a speed sensor.
Wheel size
16"x2,125"
Unfolded bike size
132x59x98 cms
Folded bike size
74x40x64 cms
Weight
17 Kg
Max. admissible load
100 Kg
Max Speed (motor assisted)
25Km
Motor placement
Rear engine
Sensor
Speed
Gear
7 speed external gear
Brakes
Front and rear 160mm disk. Mechanic
Battery
Seat post, removable
Battery charging time
3.5h
Display
Multifunction digital display. USB port
Assistance levels
5
Lighting
Front light from display. Rear battery light
Battery
36V 7.8Ah
Range
Till 50km
Fenders
Front and rear wheel aluminium fenders
Rear carrier admissible load
25Kg (optional equipment)
Stem
Telescopic adjustable high stem
Color
Black / White
Throttle lever
Optional
Anti-theft battery key locker
Optional
Motor
Shengy 36V 250W rear motor
Frame and forks
6061 aluminium alloy
Rims
Double wall aluminum alloy
Tire
Kenda 16" x 2.125" / 40 to 65 PSI
Battery
36V 7.8Ah
Chain wheel
Prowheel 48T
Free wheel
SHIMANO MF-TZ500-7
Rear derailleur
SHIMANO Tourney 7s
Shifter
MICROSHIFT 7S/P
Display
Naici KT-5 color LCD
Chain
KMC
Controller
Naici sine wave, speed sensor
FOLDED / UNFOLDED Q.ik NEMAUSUS
ALUMINIUM ALLOY FRAME
The Nemausus is Q.ik's most compact model. It has a light, strong 6061 aluminium alloy frame. It has a tubular structure with a Z-shaped elliptical cross-section, with a cut-out and hinge in the middle. When unfolded, the bike is secured by a locking system that ensures a rigid and stable position for riding.
FOLDING SYSTEM
The Nemausus model folding system is intuitive, easy and fast.
The folding system involves two steps. The first step involves rotating the front part of the frame 180° to position the front wheel parallel to the rear wheel. The second step involves folding the handlebar post and handlebars to sit alongside the wheels. To stabilise the bike when it's folded, it is necessary to lower the seat post until it touches the ground and becomes the third point of support.
A two-piece magnets device located on the axles of the front and rear wheels fix the folded position of the bike. It prevents the parts from moving while being manipulated or rolling on the pavements.
7.8Ah REMOVABLE BATTERY
The Nemausus model is equipped with a 36V lithium battery with a 7,8Ah charge capacity, giving it a riding range of up to 50 km (according to the manufacturer). The battery fits neatly into the seat post, where the charging port and main power switch are also located. It can be easily removed, transported and charged anywhere without needing bike to be nearby.
The charging system features an innovative BMS, which prevents the battery from overcharging and overheating and regulates the release of energy for greater efficiency and longer use.
36V 250W MOTOR
The Seana features a 36V, 250W motor located in the rear wheel, which is has a factory-set power limitation to stop the bike from exceeding 25 km/h. By law, when the bike reaches this speed, the motor must stop providing assistance. The motor is powerful enough to meet the demands of overcoming steep slopes.
A pedalling pressure Torque type sensor controls the motor assistance depending on which of the five levels has been chosen.
It has a clutch system that allows the bike to roll without any resistance should the rider want to cycle without any help from the motor.
160 mm MECHANICAL DISK BRAKES
The Nemausus is equipped with 160 mm mechanical disc brakes on both the front and rear wheels. They offer great braking power and guarantee to stop the bike within a few metres in case of emergency in all riding conditions. In addition, squeezing the brakes automatically disables the motor, facilitating a more immediate brake response.

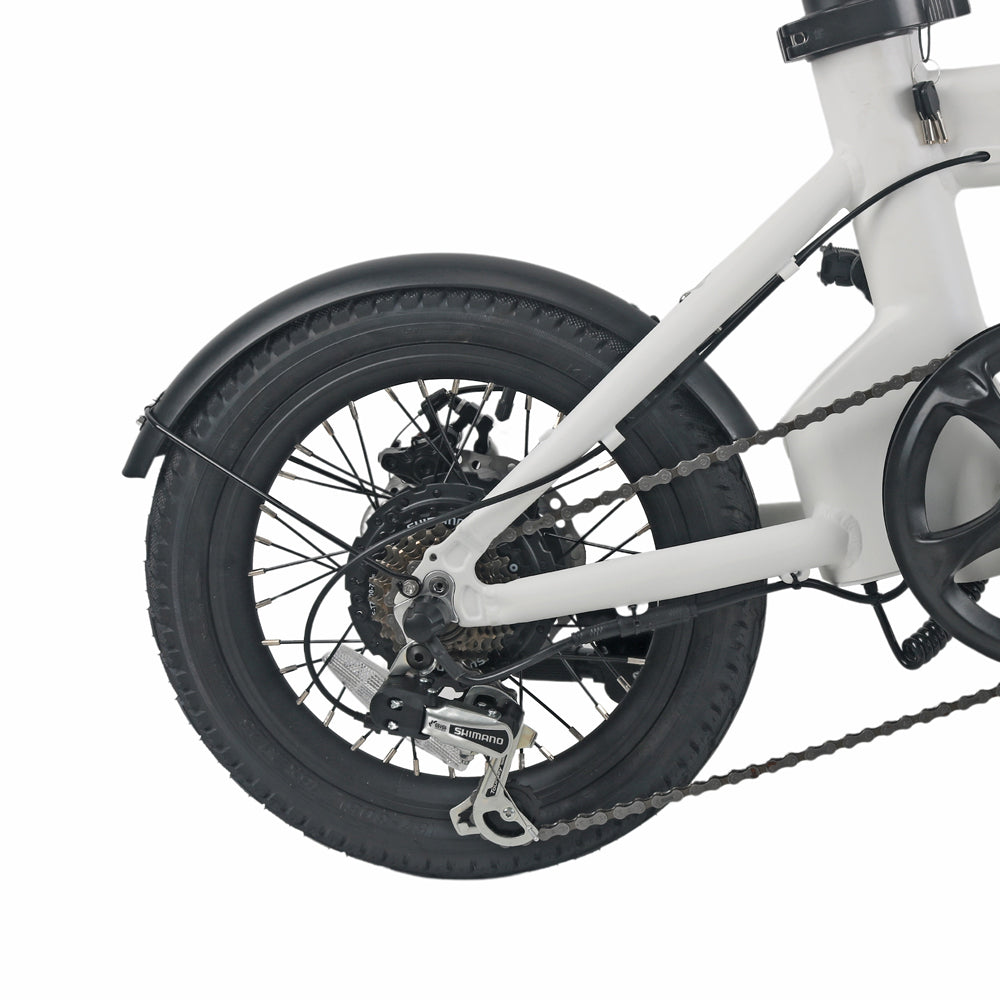

7-SPEED TRANSMISSION
The Nemausus 7-speed transmission adjusts the pedalling effort without forcing the motor. The shift lever on the handlebars delivers accurate gear selection according to the gradient of the road. The derailleur is part of the Shimano 7-speed Tourney series.
MAGNETIC BUCKLE
The Nemausus sets a magnetic device specifically designed to securely join the front fork and frame together when the bike is folded.
Q.ik NEMAUSUS. CHOOSE A HIGHLY COMPACT FOLDING E-BIKE!
Do you want to avoid parking your ebike on the street but have a limited room to keep your bike safe at home?
Your choice should definitely be the Nemausus of Q.ik ebikes!
With Nemausus you will get a light and highly compact ebike at a more than reasonable price. Easy to fold and unfold, easy to ride, easy to carry and get on the public transport and even in the car boot.
Everything is easy with the new Q.ik Nemausus!
