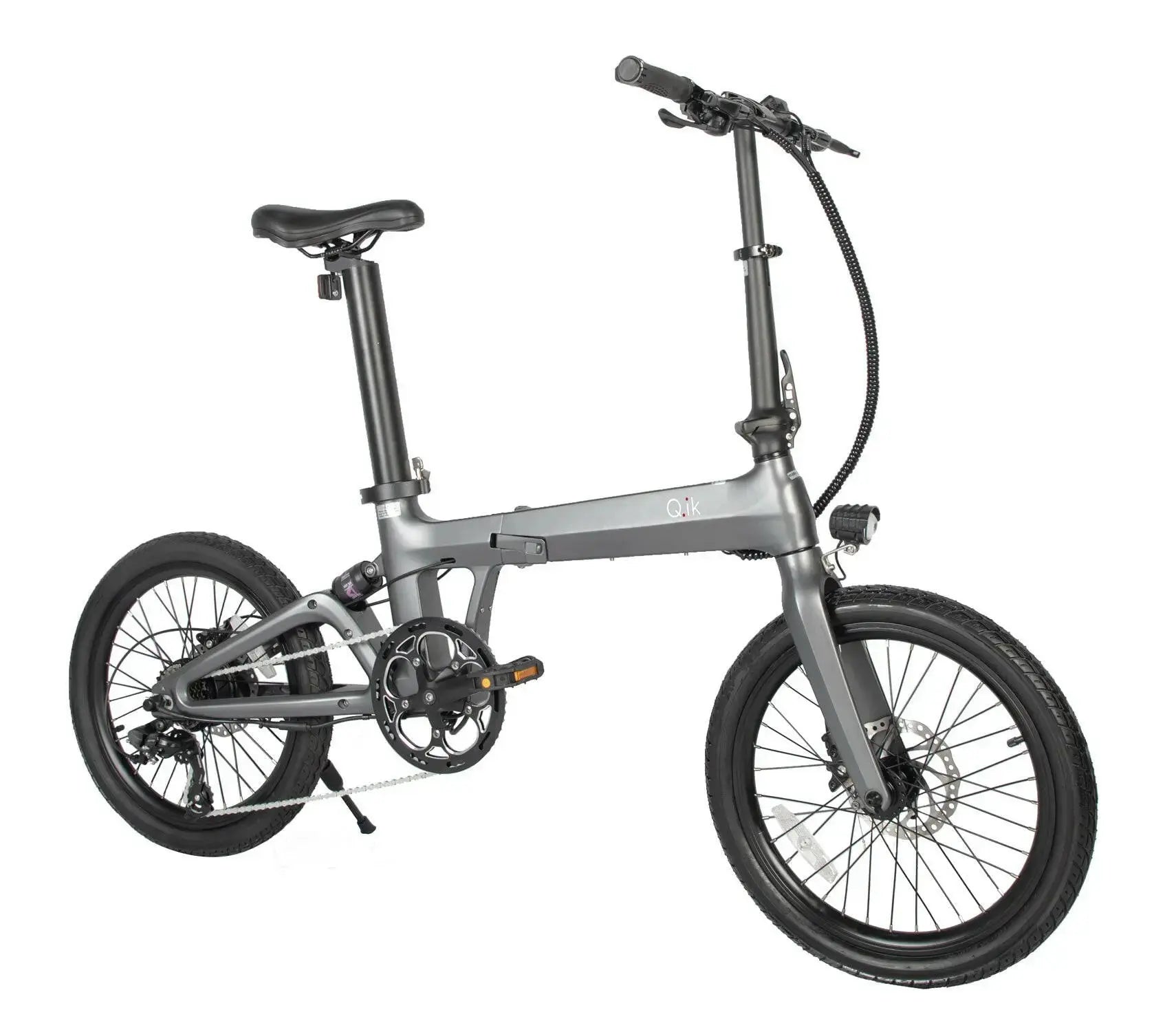

Q.ik Brema S
MAGNESIUM ALLOY REAR SUSPENSION FOLDING ELECTRIC BIKE
SPECIFICATIONS
The Brema is a high-end ebike model. Frame, front and rear forks are made of magnesium alloy. This is a material that gathers excellent qualities of strength and lightness for the bike structure elements. It is a 20” wheel compact model which gets folded by two points of articulation and with only two movements. Beyond being a highly light model, the Brema has the particularity of mounting a hydraulic suspension element to absorbs the movements and vibrations of the rear wheel. This makes the bike also suitable for use off road.
The Brema model is equipped with a 36V LG lithium battery with a 10,4Ah charge capacity, optionally 14Ah, giving it a riding range of up to 100 km.
A Speed-type movement sensor manages the engine's demand for assistance, depending on which of the five assistance levels has been selected.
Wheel size
20'x2.125'
Unfolded bike size
163x59x96 cms
Folded bike size
92x52x70 cms
Weight
21.5 Kg
Max. admissible load
100 Kg
Max Speed (motor assisted)
25Km
Motor placement
Rear engine
Sensor
Speed
Gear
7 speed external gear
Brakes
Front and rear hydraulic 160mm disk
Battery
Seat post removable
Battery charging time
3.5h
Display
Multifunction digital display. USB port
Assistance levels
5
Lighting
Front and rear lights from display
Battery options
10.4Ah /14Ah
Range
Till 100km
Fenders
Front and rear wheel aluminium fenders
Rear carrier admissible load
25Kg
Stem
Telescopic adjustable high stem
Color
Black / Grey / Blue /Orange
Throttle lever
Optional
Anti-theft battery key locker
Optional
Motor
Shengyi. 36V 250W rear motor
Frame and forks
Magnesium alloy
Rims
Double wall aluminum alloy
Tire
Kenda 20" x 2.125 / 40 to 65 PSI
Battery
LG 36V 10.4Ah or 14 Ah
Chain wheel
Prowheel 48T
Free wheel
SHIMANO MF-TZ500-7
Rear derailleur
SHIMANO RD-TY300
Shifter
MICROSHIFT 7S/P
Display
Naici KT-5 color LCD
Chain
KMC
Controller
Naici sine wave, speed or Torque sensor

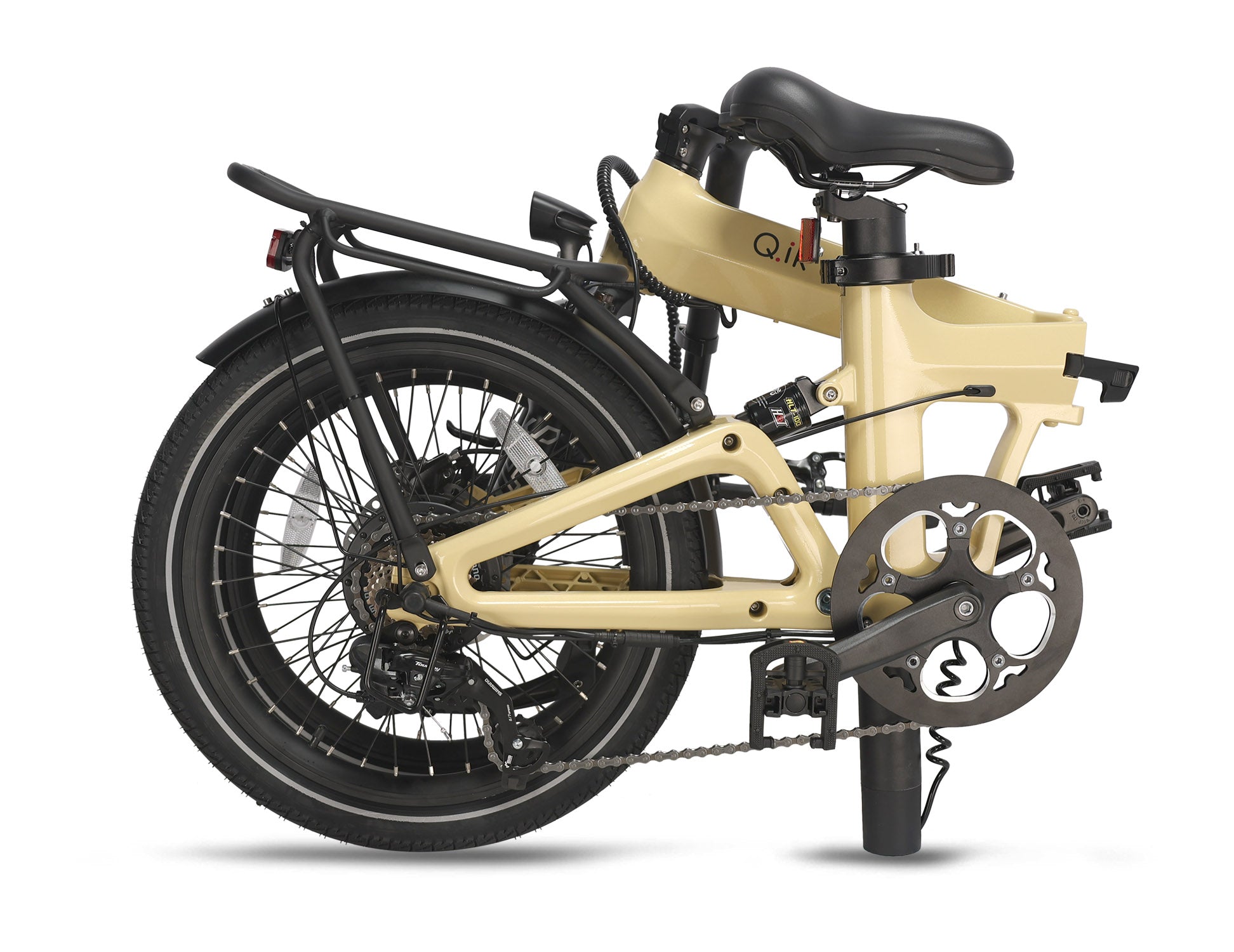

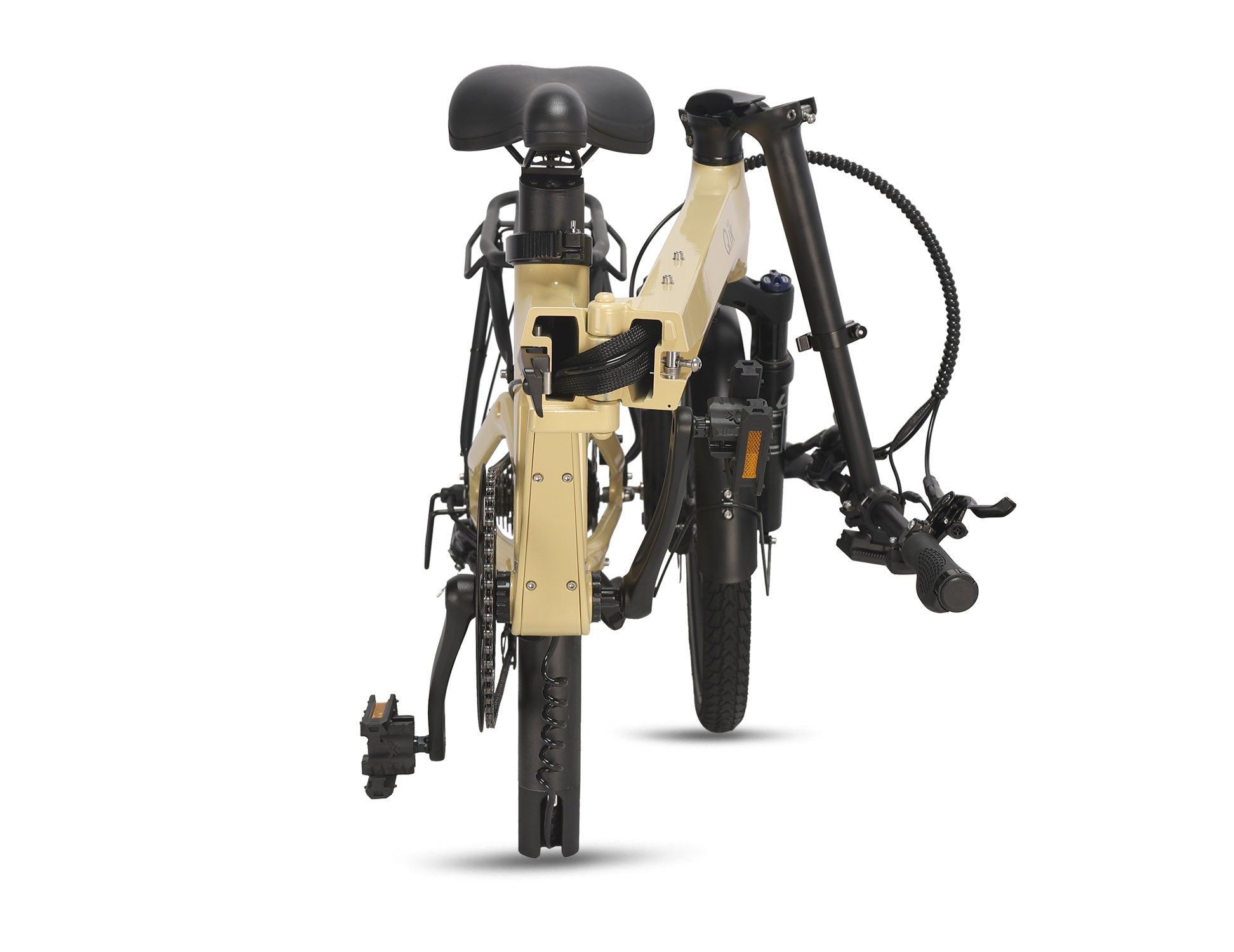

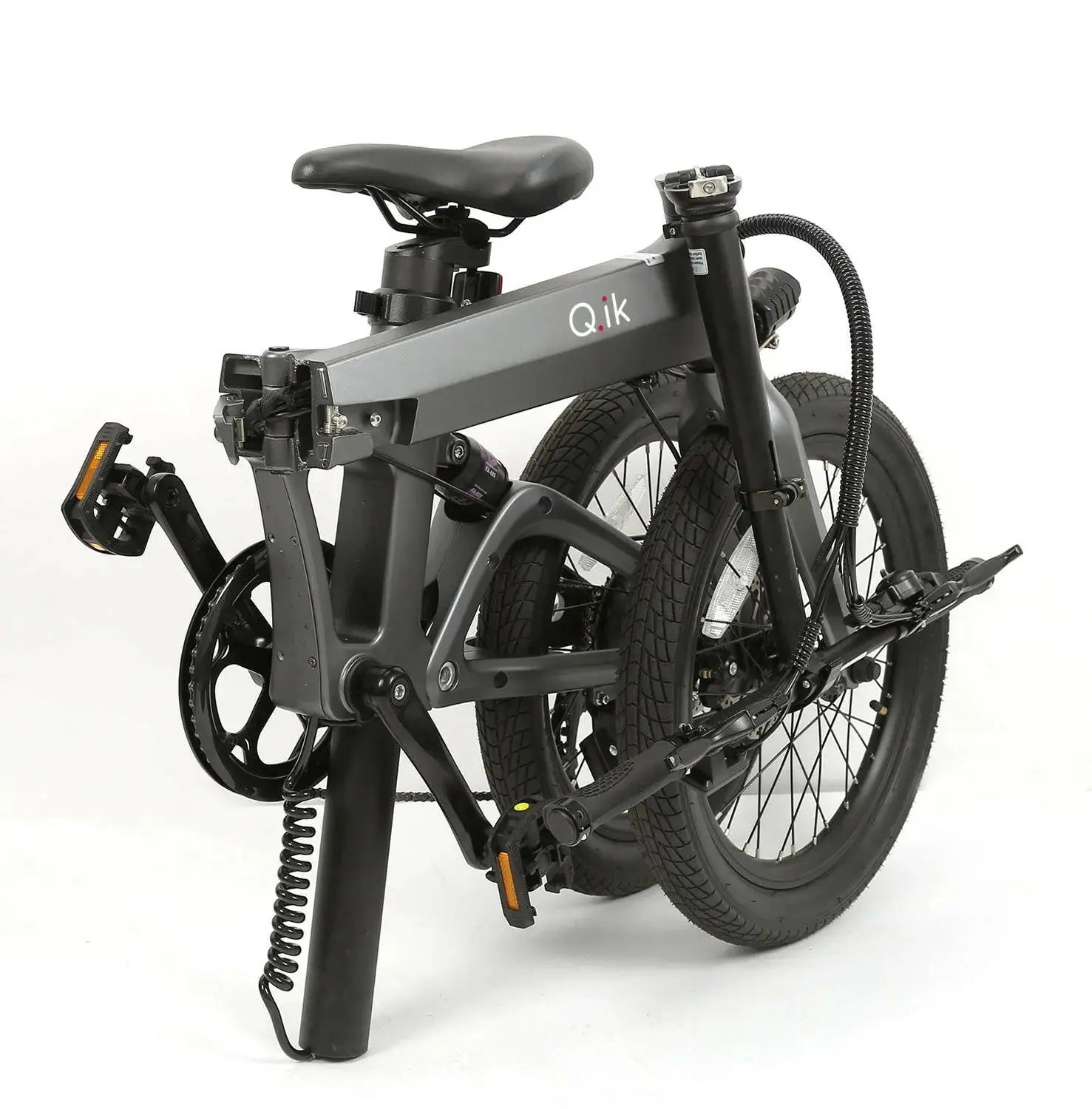

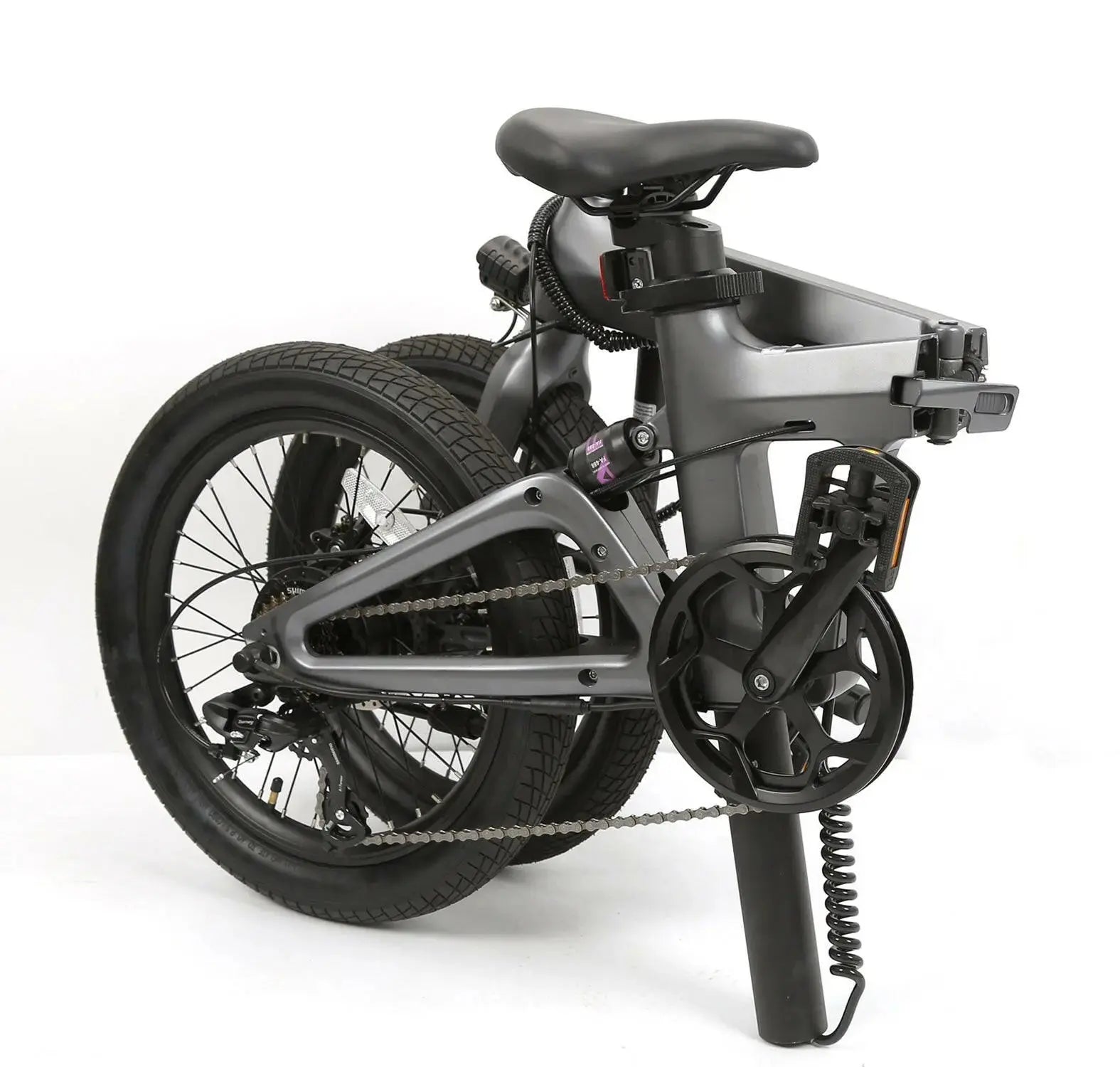

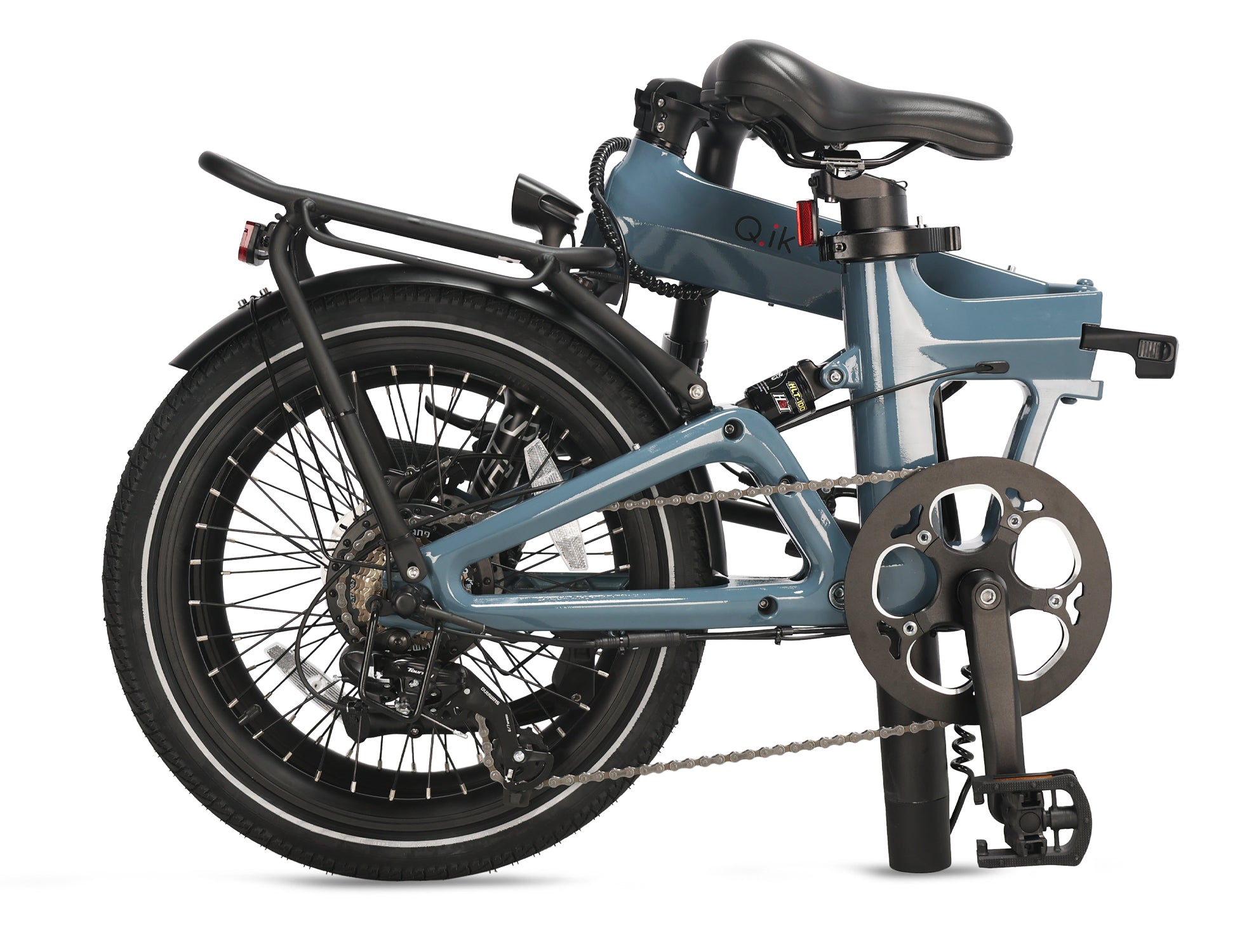

FOLDED / UNFOLDED Q.ik BREMA
MAGNESIUM ALLOY FRAME
The structural parts of the Brema model, main frame, rear frame and front fork are made of magnesium alloy. This is a material that gathers excellent qualities of strength and lightness for the bike structure elements. The main frame and rear fork connection sets an articulation mechanism up which allows the rear wheel suspension device showing a high efficient performance.
FOLDING SYSTEM
The Brema model's folding system is intuitive, easy and fast.
The folding system involves two steps. The first step involves rotating the front part of the frame 180° to position the front wheel parallel to the rear wheel. The second step involves folding the handlebar post and handlebars to sit alongside the wheels. To stabilise the bike when it's folded, it is necessary to lower the seat post until it touches the ground and becomes the third point of support.
A two-piece magnets device located on the axles of the front and rear wheels fix the folded position of the bike. It prevents the parts from moving while being manipulated or rolling on the pavements.
LG BATTERY
The Brema model is equipped with a 36V LG lithium battery with a 10,4Ah charge capacity, optionally 14 Ah, giving it a riding range of up to 100 km (according to the manufacturer). The battery fits neatly into the seat post, where the charging port and main power switch are also located. It can be easily removed, transported and charged anywhere without needing bike to be nearby.
The charging system features an innovative BMS, which prevents the battery from overcharging and overheating and regulates the release of energy for greater efficiency and longer use.
36V 250W MOTOR
The Brema features a 36V, 250W motor located in the rear wheel, which is has a factory-set power limitation to stop the bike from exceeding 25 km/h. By law, when the bike reaches this speed, the motor must stop providing assistance. The motor is powerful enough to meet the demands of overcoming steep slopes.
A pedalling movement Speed type sensor controls the motor assistance depending on which of the five levels has been chosen.
It has a clutch system that allows the bike to roll without any resistance should the rider want to cycle without any help from the motor.
Q.ik BREMA. CHOOSE COMFORT AND THE LONGEST RANGE
Brema is a multipurpose folding ebike. It was designed to perform a comfortable, stable and amazing riding, mainly focused on urban use, but also suitable for other off-road pavements thanks to its wheel thickness and the rear suspension monoblock.
Riding Q.ik Brema is genuinely fun! Feel the freedom to explore, and the joy of rediscovering your city – it's an experience you won't want to miss.
